Tools Needed - Large Zip Ties - 8-10mm Sockets - Electrical Tape - Velcro Tape - Android device with Google Play Store access. Installation Time: ~15-30min depending on experience. Step 1: Disconnect the battery Step 2: Locate the section of cable labeled "MAP" from the ProTuner main harness. Disconnect the factory MAP sensor plug, and connect the Pro-Tuner MAP sensor cable. Step 3: Locate the section of cable labeled "BOOST" from the ProTuner main harness. Disconnect the factory BOOST sensor plug, and connect the Pro-Tuner BOOST sensor cable on each end of the factory cable. *Note: The BOOST map sensor is located on the pipe before the throttle body, and it looks just like the Map sensor you connected on the Step 2. . Note: The BOOST sensor is located on the cold pipe just before the throttle body Step4: Locate the CRANK sensor underneath the factory charge pipe. Find the Y-cable labeled as "CRANK" from the Pro-Tuner box. Disconnect the factory CRANK sensor cable, and connect the Pro-Tuner CRANK sensor cable on each end of the factory plugs. Locate the matching plug from the Pro-Tuner main harness and connect the other end of the crank cable. Step 5: Locate the CANbus cable from the Pro-Tuner and connect it to the CANbus port located next to the engine by the passenger side. Use electrical tapes to secure the connection. Step 6: Locate the Bluetooth Module from the Pro-Tuner box, and connect it to the matching plug on the Pro-Tuner harness. Step 7: Optional Speed Limiter Canceler(Green Wires) - Coming Soon Step 8: Use electrical tapes on each end of the Blue & Green wires as they are not used. Step 9: Locate and connect the power wire from the Pro-Tuner to terminal location inside the fuse box. Step 10: The 2 Pin Gray connector is for the V2 ICM (Water Meth Injection System) & 4 pin white connector is for developer firmware update cable. Use electrical tape to seal them as they are not being used. The V2 Meth Injection system can be purchased @ https://www.lap3usa.com/product-page/pro-tuner-v2-meth-injection-kit Step 11: Connect the Battery Step 12: Check the Manufacture date stamped behind the Pro-Tuner ECU. Grab your Android device, install the following PROSS app from Google Play store based on the manufacture date. (*V1 does not have any manufacture date listed on the back) Link to download Pro-Tuner V1.0 App(Manufacture date 2018): PROSS BT V1 Link to download Pro-Tuner V2.0 App(Manufacture date 2019): PROSS BT V2 Link to download Pro-Tuner V2.5 App(Manufacture date 2020): PROSS BT V2.5 (iOS app is also available for V2.5 Pro-Tuner) Step 13: Start the car and pair the device through the Bluetooth Setting. *If you have V2.5, skip the bluetooth pairing process as it doesn't need to be paired Step 14: When you open the app, it will ask you for serial#. The Serial numbers are located behind the Bluetooth module. Once its up and running, confirm the 3 indicators (Bluetooth,OBD2,Uncle Chip) on the app are red.

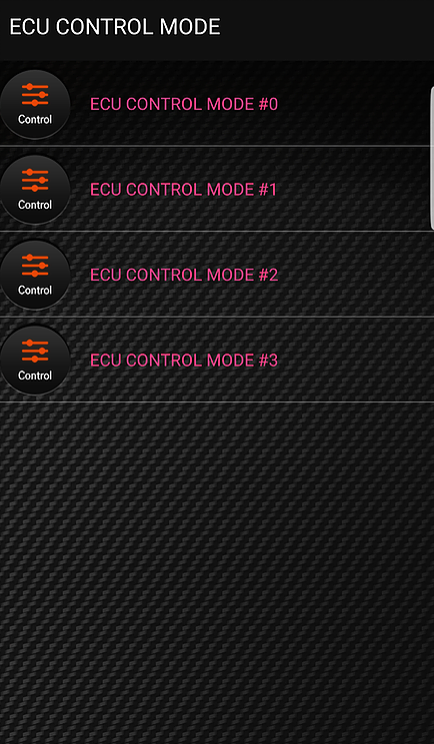

Step 15: Select the ECU CONTROL MODE button and to choose your mode.
(Scroll down further if you have V1) V2+ Pro-Tuner Mapping : Mode 1 - Stock Map Mode 2 - 92+ Octane Mapping Mode 3 - 93+ Octane Mapping Meth Mode - Meth Mapping (Requires V2 Meth kit & 70%+ M1 Methanol mix) User Mode - 91 Octane Mapping, which can be customized by the user
Pro-Tuner V1 Mapping: Mode 0 - Stock Map Mode 1 - 91 Octane Mapping Mode 2 - 93 Octane Mapping Mode 3 - Meth Tune Mapping (80% WMI with a ~500mm Nozzle. Injection Start between 5-10psi & Max Spray @ 15-20psi)
